EUROPE PARTS · TECHNICAL CATALOGUE

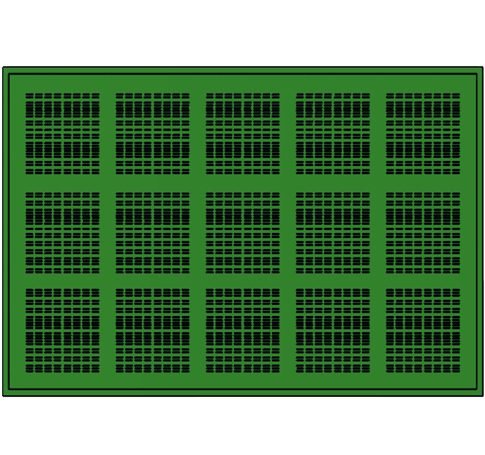

Dewatering Screen Panels
Modular polyurethane panels for drainage and solids retention. Slot selection is evaluated together with feed distribution, fines content and the screen operating conditions.
Where it is used
- Sand dewatering
- Drainage following wet classification
What we need for a quote
- Feed grading and fines content
- Screen model and panel fixing details
- Desired solids retention and discharge condition
Specify the component
| Selection point | Information to provide |
|---|---|
| Slot size and orientation | Feed grading and fines content |
| Deck interface and drainage area | Screen model and panel fixing details |
| Impact and feed-zone protection | Desired solids retention and discharge condition |
Send a drawing revision or part reference, the quantity for each item and your delivery destination. Material grade, tolerances, inspection records and delivery terms are agreed in the quotation; they are not assumed from the product name.
Selection guidance
Will smaller slots always produce a drier product?
Drainage also depends on the feed, bed depth and screen operation. Slot changes must balance water removal with solids retention and blockage risk.
How is compatibility confirmed?
We compare the equipment reference, drawing, fixing geometry and operating conditions. Manufacturer and model names identify the intended application; they do not establish OEM supply or an affiliation.
Production partner
Elkapol is the production partner for this range. Europe Parts coordinates the technical enquiry and commercial offer.
Related products
Aggregate Washing Plants
Integrated washing and fines management for sand and aggregates, coordinated with Elkamak. The process is defined from raw feed through to the finished material and water circuit.

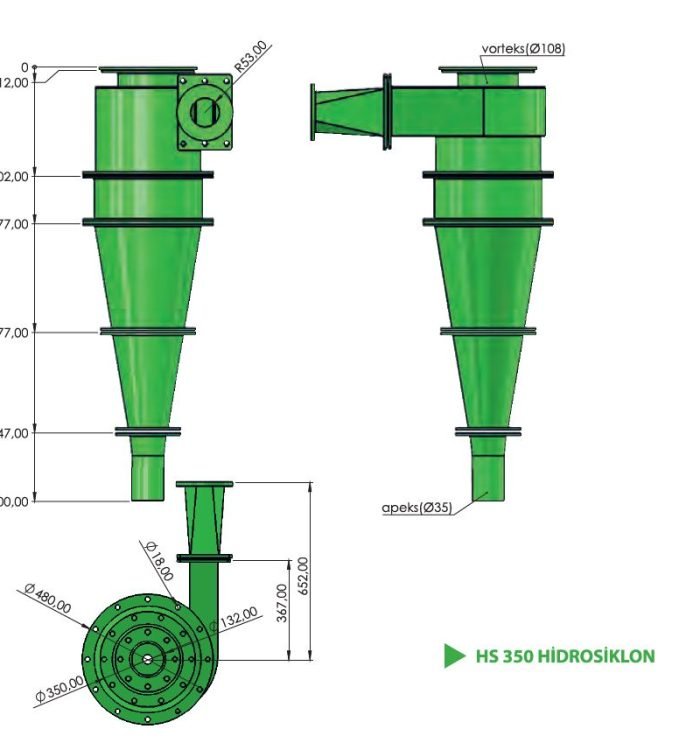

Hydrocyclones & Multicyclones
Elkapol HS 250, HS 350, HS 500 and HS 660 hydrocyclones for wet classification enquiries. A model designation is a starting point; separation duty and the connected slurry circuit determine selection.

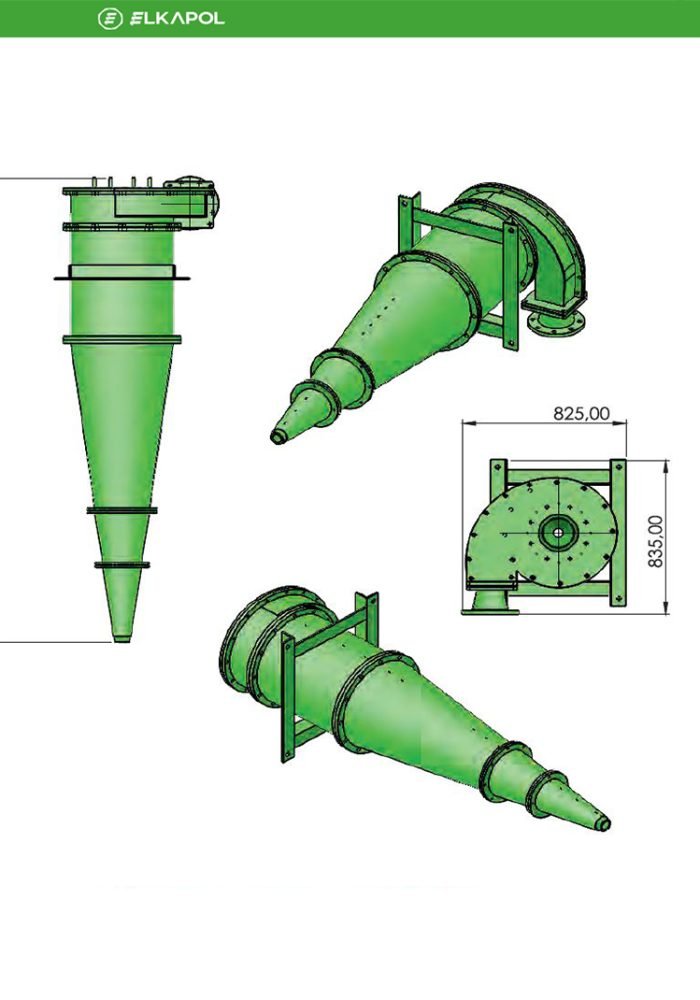

Slurry Pump & Hydrocyclone Spares
